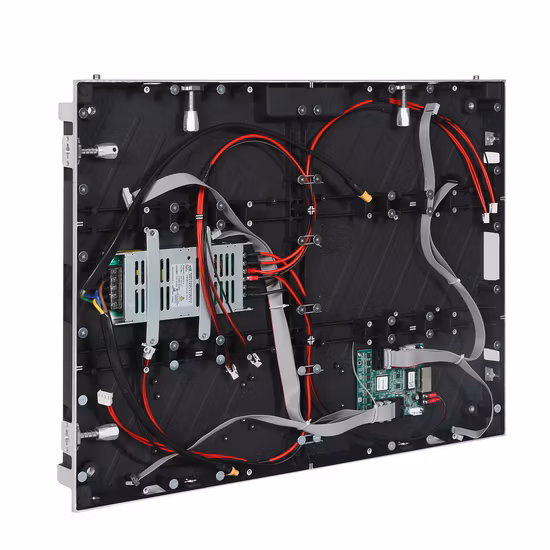

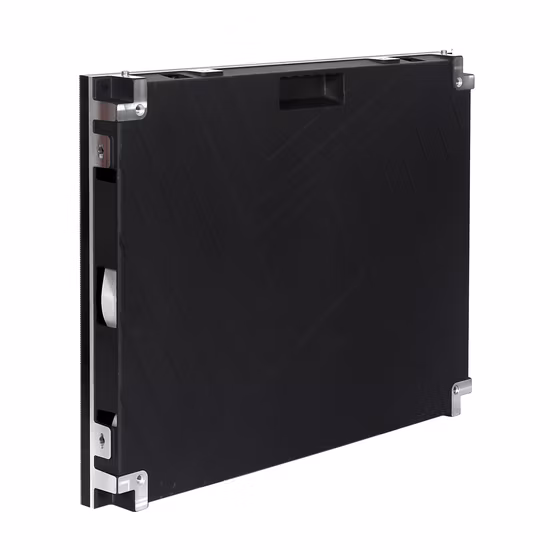

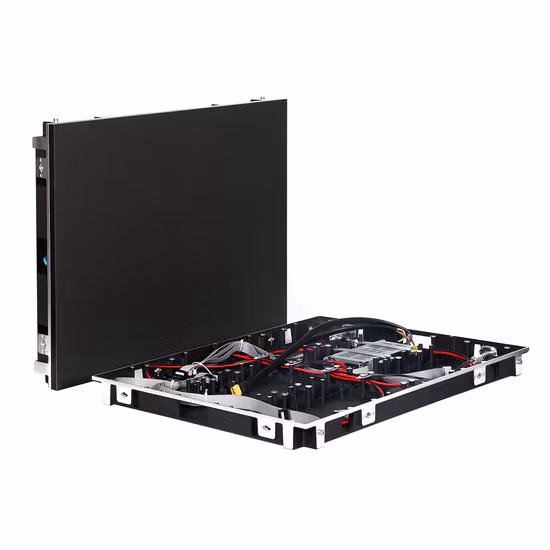

4K P1.5 P1.8 Indoor Front Service Gob Magnet LED Video Wall Display Panel

Basic Info

Model NO.	P1.53
Pixel Configuration	1R,1G,1B
Pixel Density	422500dots/Sqm
Scanning Mode	1/52scan
System Operating Platform	Widows Computer
Display Type	LED Video Display
Application	Stage Performance, Advertising, Shopping Guide
IP Rating	IP40
Certification	CE, RoHS, CCC
Video Processor	Colorlight,Novastar,Vdwall etc.
Application Place	Control Room ,Exhibition,Show,Mall ,Meting Roometc
LED Controller	Novastar Vx4s Mctrol 600 etc.
Maintenance	Front Maintenance
LED Module	320*160mm
Power Supply	G-Energy,Meanwell,Chuanglian
Flight Socket	Linko,Seetronic etc.
LED Chip	Epistar,Silan,Nationstar
Encapsulation	Hongsheng,Kinglight,Nationstar LED
Package	Flight Case,Plywood Case
Transport Package	Flight Case
Specification	L72*W43*H87cm, 4 screens in side a case
Trademark	szxgc
Origin	China
HS Code	8528591090
Production Capacity	5000sqm/Month

Packaging & Delivery

Package size per unit product 74.00cm * 56.00cm * 70.00cm Gross weight per unit product 80.000kg

Product Description

4K 16: 9 Indoor HD Front Service Aluminum LED Video Wall Display Screen P1.5 P1.6 P1.8 P2 P2.5

4:3 Ratio Cabinet DesignIndoor front service LED Display is designed with 4:3 golden ratio,the cabinet size is 640*480mm. specially designed for a variety of 4:3 and 16:9 LED large screens.

Perfect Structure DesignHigh standard industry-leading design, high-end atmosphere. Die-cast aluminum cabinet bottom shell for better heat dissipation. Up and down, left and right quick lock design, easy to install and assemble.

Free standing It's flexible for different locations and free standing frame for you, easier for installation.

Hanging installation.It's very nice for different event, exhibition and stage background.

Wall mounted installation

P1.53 Small Pixel Pitch High Resolution 3840Hz/s Refresh Rate LED Display Module

Full Front Maintenance Die Casting Aluminum LED Video Wall Screen Panel,used for 320X160mm LED module P1.25 P1.5 P1.667 P1.8 P1.93 P2 P2.5 ,it can be high-end GOB LED module.usually use 640*480mm,640*640mm,960*640mm,960*480mm LED Display Panel.

There are Colorlight ,Novastar ,VDWALL ,RGBLINK LED display video processor for you select,
different screen reslution use diffenrent LED controller ( Novastar MCTRL300,TB50,Colorlight X4 A35 etc)and different video processor (Novastar VX4S ,VDWALL LVP615 LVP300 LVP909 etc)

LED Screen
	Pixel density	422500dots/sqm	Continuous Working Hours	>72 hours
	Ave power consumption	200W/sqm	Using Life	100,000 hours
	Max power consumption	700W/sqm	MTBF	>10,000H
	Optimum Viewing Distance(m)	≥1.53m	Scatter OOC Point	<0.01%
	Brightness(cd/m2)	≤1000cd	Continuous OOC Point	None
	Refresh Rate	3840 frame/s	IP Grade	IP40/IP30
	LED Drive mode	Constant Current	Working Temperature	-35C----+60C
	Display color	1M--69G	Working Humidity	10---80%
	Signal input	DVI,HDMI,SDI,VGA,CVBS etc.	Input Voltage	220~240V
Control distance	Computer control system :CAT5 cable:<100 m; Single mode fiber:<10 km
Control system	Colorlight X2 ,Novastar VX4 ,TB6 LED controller
Operating System	Windows computer
Control mode	Computer /smartphone/iPad
Maintenance Access	Full front service.

Indoor Outdoor Project Cases

Installation

Our Different Standard Product For Your Reference:

Our certifications:CCC CE FCC ROHS ISO9001 ISO14001

Our Services
Warranty:We guarantee all our displays, modules, parts for two full years.

During this time, we will replace or amend all our goods for free if there is something wrong with them.

We provide lifetime maintenance and charge only for the raw materials. We provide technology training

for free, which contains the operation and maintenance training of the LED screens in the factory.

We also provide the operation manual, software, test report and so on. Any associated CAD drawing

on how to fix up the display and some other expert suggestion will be provided.Technology Training:1. We provide the technology training for free, which contains the operation training and

maintenance training in the factory.2. We will send our engineers to your country by negotiation.Documents and Certification:1. We provide the operation manual, software, test report and so on.2. We can also provide all kinds of certification such as CE, FC and so on.CAD Drawing and Fixing:1. We provide CAD drawing on how to fix up the display for free and some other expert suggestion.2. We will send our engineers to your place if we are expected after our negotiation.Additional service:We provide you the forwarding information, and some other information ,such as flight case,

structure information for your reference for free.
Professional and standardized aviation plug with high guarantee High stablity and reliability

with integrated circuit ,dust-proof .
